The BSM80B-175AA is a brushless AC servomotor from Baldor's BSM series, built with an 80mm frame. Rated for 0.57 kW at 4000 RPM, the motor delivers 1.63 Nm continuous stall torque, 2.59 A RMS continuous stall current, and operates from a 300 V rated bus voltage. Maximum speed is 7000 RPM, with a peak current of 7.71 A RMS and Class F insulation rated at 25°C ambient.

Specifications

Condition & testing

This motor is in used condition. The black powder-coated housing shows light surface scuffing, scratches, and dust; the rear cover terminal area is opened, exposing internal wiring (red, blue, black leads) and a small connector board; some corrosion is visible on rear screws consistent with service use.

Baldor BSM-series servomotors are used across industrial automation and CNC machine applications.

Notice

Part numbers and brand names are shown for identification and compatibility reference only. The buyer must confirm suitability for their application before ordering. This item is sold in the used condition described above.

Questions & answers

What condition is this motor in and what can you tell me about it?

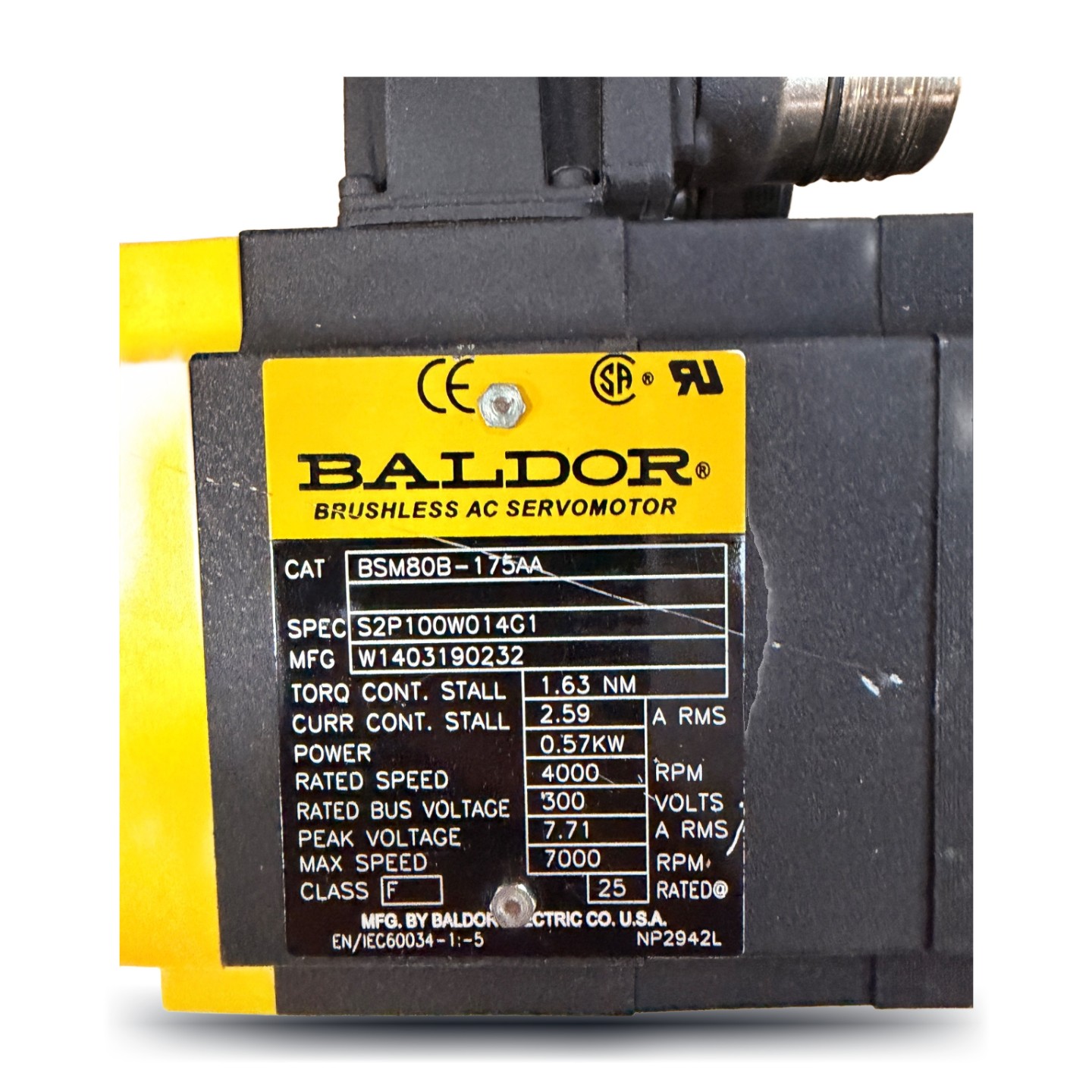

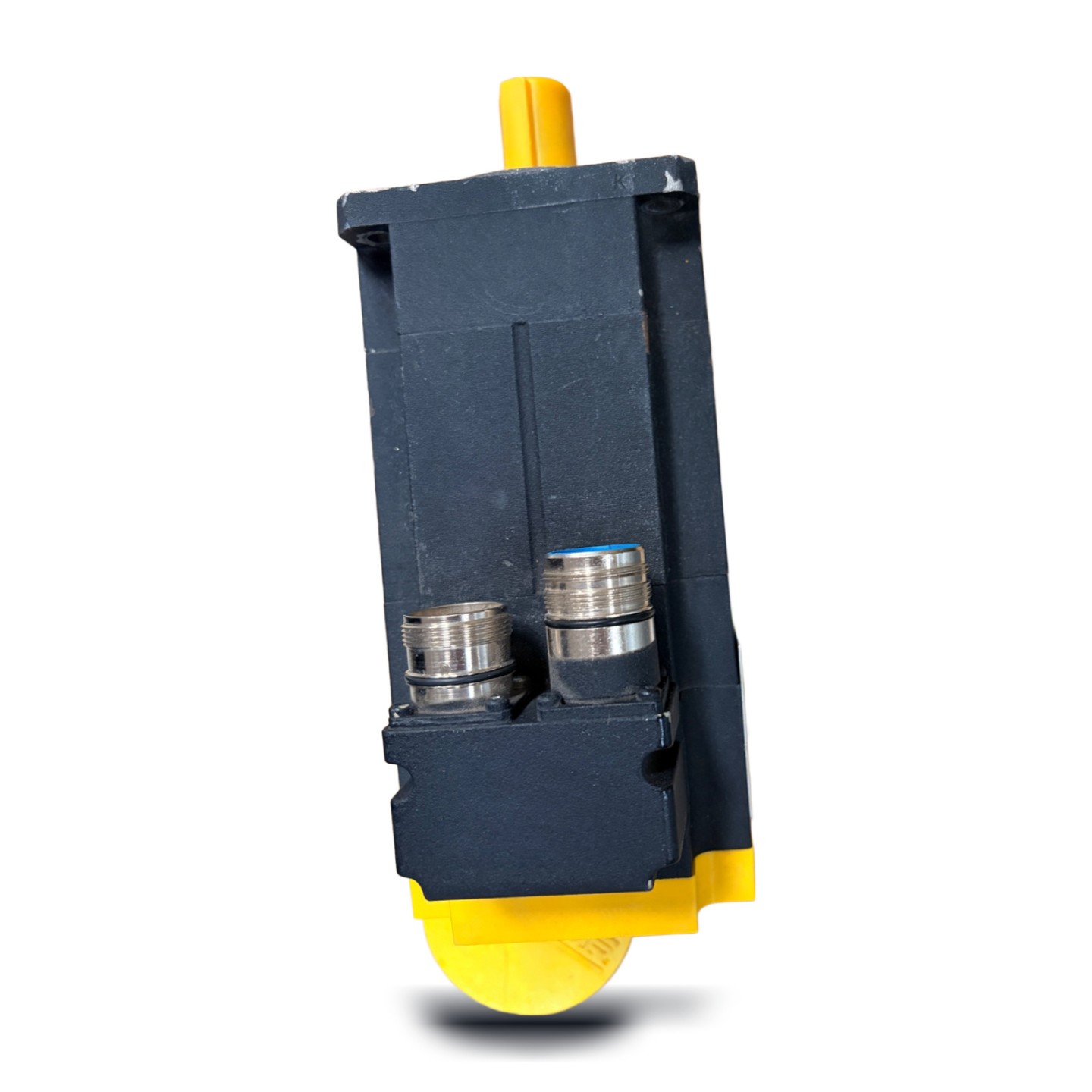

This is a used Baldor cylindrical brushless AC servomotor with visible light surface scuffing, scratches, dust, and some corrosion on rear cover screws. The nameplate shows it's a SPEC S2P100W014G1 rated for 0.57KW power, 4000 RPM rated speed, 300V rated bus voltage, with continuous stall torque of 1.63 NM and Class F insulation. The unit features a black powder-coated housing, yellow mounting flange and terminal shroud, front-mounted circular connector ports for power and feedback, and an opened rear terminal cavity revealing internal wiring and copper windings.

How do I know if this is the correct servomotor for my application?

This is a Baldor BSM80B-175AA from the BSM Series.

Where does this ship from and how fast will it go out?

This item dispatches within 24 to 48 hours.

Is there any warranty included with this motor?

This motor comes with a 30 days warranty.
