Minebea PF198-20SSV0434 Power Supply 188W | Used

155.00 €

Tax excluded

Condition : Used

1 Item article en stock

Last items in stock

Used Minebea PF198-20SSV0434 multi-output switching power supply, 100-240 VAC input, 188W maximum output.

The Minebea PF198-20SSV0434 is an AC-DC multi-output switching power supply from the PF198 series. It accepts 100-240 VAC input and delivers multiple DC outputs: +5V at 22.0A, +12V at 4.4A, +3.3V at 16.0A, -12V at 0.5A, -5V at 0.5A, plus an auxiliary +5V at 1.5A. Maximum continuous main output power is 188W, with a combined limit of 139W on the 5V and 3.3V rails. This unit was manufactured in Thailand and is offered in used condition.

Specifications

Product Family	PF198 series
Input Voltage	100-240 VAC
Input Current	5.0 A
Input Frequency	47-63 Hz
Main Output +5V	+5V 22.0A MAX
Main Output +12V	+12V 4.4A MAX
Main Output +3.3V	+3.3V 16.0A MAX
Main Output -12V	-12V 0.5A MAX
Main Output -5V	-5V 0.5A MAX
Auxiliary Output	+5V 1.5A MAX
Max Continuous Main Output Power	188 W
Max Combined Power (5V & 3.3V)	139 W
Country of Manufacture	Thailand

Condition & Testing

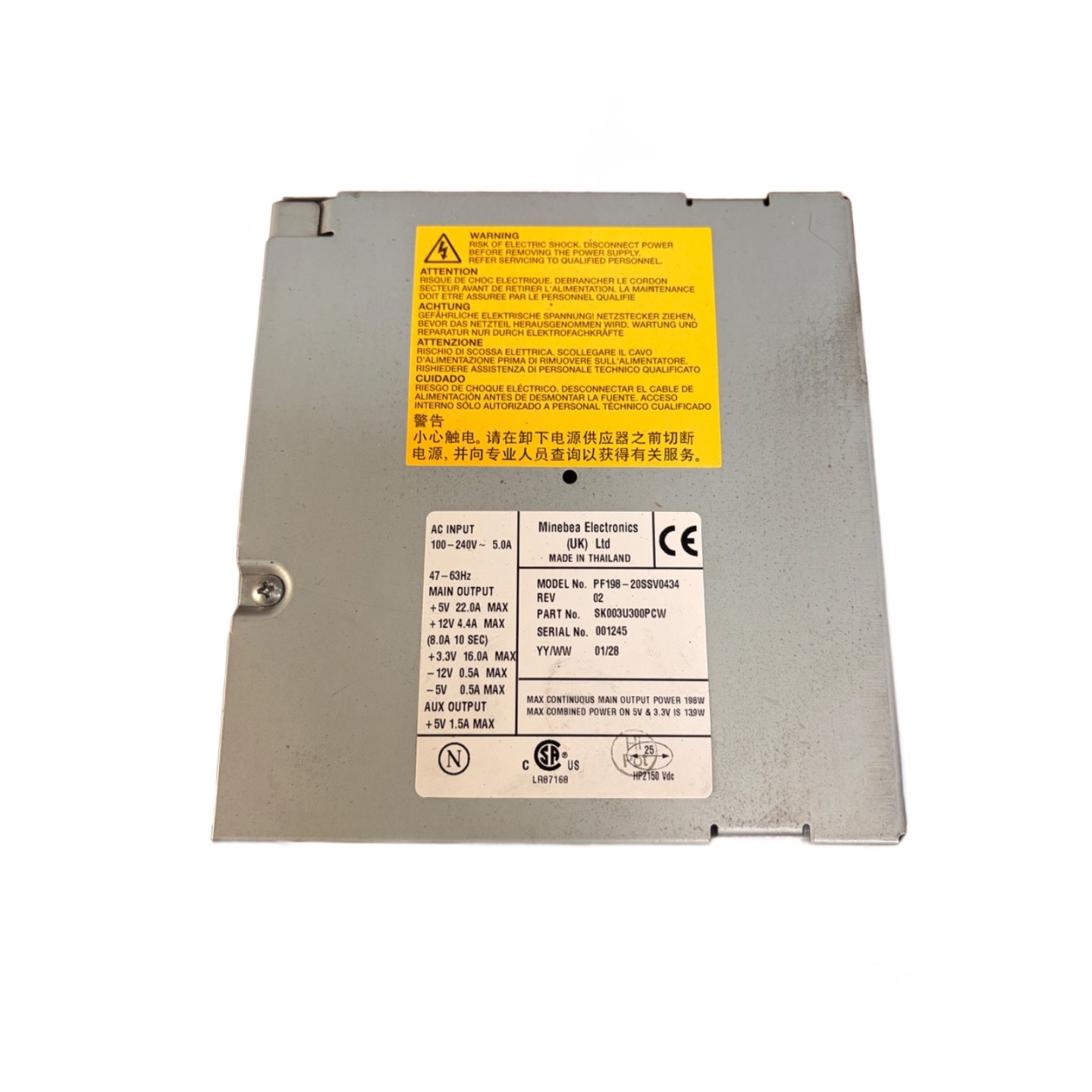

This power supply is in used condition. Unit bears serial number 001245, date code 01/28, and revision 02 as shown on the label.

Minebea manufactures power supply components for industrial and embedded system applications.

Notice

Part numbers and brand names are shown for identification and compatibility reference purposes only. The buyer is responsible for confirming suitability before ordering. This item is sold in its stated used condition.
